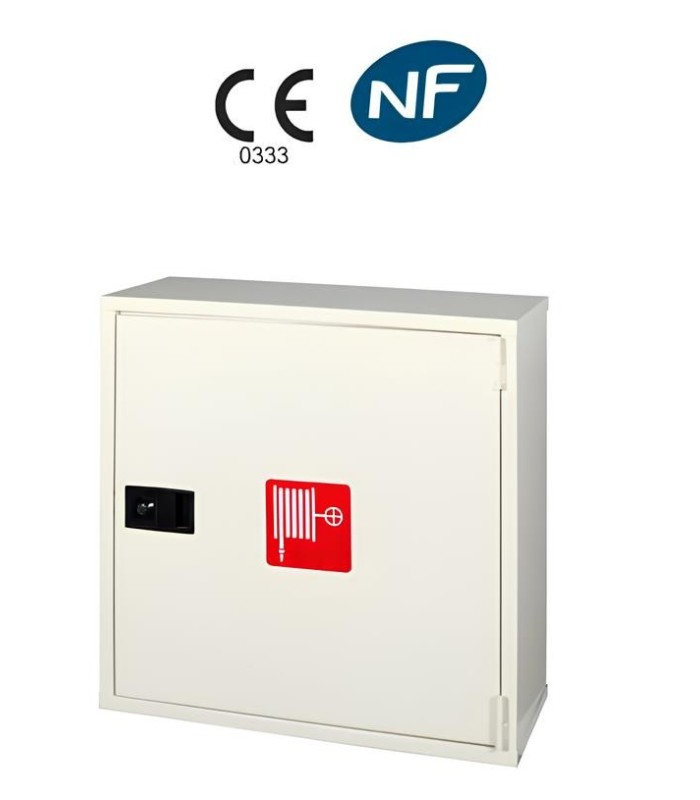

fire hose reel en Armoire - Fire hose reel Pivoting and rotating for maximum safety
Protect your premises effectively with our fire hose reel en armoire, a fire safety device designed to guarantee rapid, effective intervention in the event of a fire. Adapted to the requirements of ERP (Établissements Recevant du Public), industries and tertiary buildings, this Fire hose reel pivoting and rotating ensures optimal coverage and increased maneuverability.
Why choose our fire hose reel en Armoire?
- Optimum safety: Compliant with NF EN 671-1 standards and NF certified, guaranteeing reliability and performance.
- Rotating and pivoting system: Makes it easy to orientate the hose for a better grip when working.
- Robust cabinet: Steel construction with corrosion-resistant coating for long service life.
- Easy installation and maintenance: Ergonomic design for quick access and easy maintenance.
- Versatile use: Suitable for industrial, commercial and ERP environments, with different configurations available.
Technical specifications Fire hose reel (fire hose reel) in a cabinet

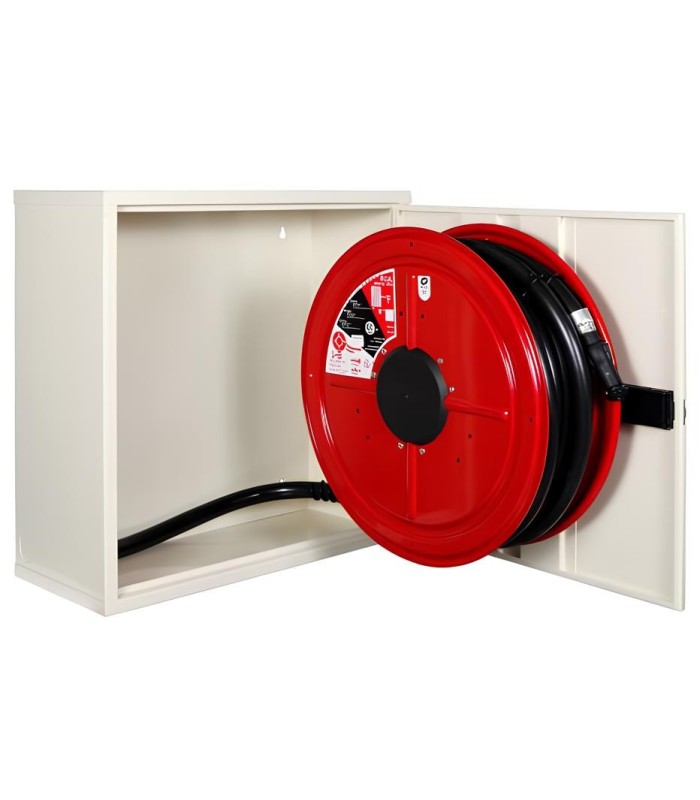

- Pivoting and rotating hose reel with axial feed for optimal handling.
- 20 to 30-meter semi-rigid hose, compliant with NF EN 694 standard, offering extended intervention range.
- Handheld nozzle With adjustable stream water flow can be adjusted to suit the nature of the fire.
- Optimized pressure and flow rate for maximum efficiency (130 L/min at 2.5 bar).
- Heavy-duty metal cabinet available in various sizes, with wall-mounted or floor-standing options.
Cabinet dimensions Fire hose reel (fire hose reel)
| Features |
AP 19/20 DMA |
AP 19/30 DMA |
AP 25/20 DMA |
AP 25/30 DMA |
| Item code |
32984 |
33246 |
33637 |
32376 |
| Nominal diameter |
19 |
25 |
| Pipe length |
20 m |
30 m |
20 m |
30 m |
| Dimensions in mm |
|
| Height A |
702 |
702 |
| Width B |
703 |
703 |
| Depth C |
288 |
288 |
| Width open door D |
1360 |
1360 |
| Opening radius (+depth) E |
945 |
945 |
| Connection F |
3/4 "F |
1 "F |
| Range in metres at 0.2 Mpa at stopcock : |
|
| Straight jet |
10 m |
| Diffused jet |
3 m |
| Empty weight |
42 kg |
45 kg |
48 kg |
53 kg |
| N.F EN 671-1 certification |
RC/02/005 |
RC/02/006 |
Installation and maintenance of your fire hose reel
Our Fire hose reel pivoting and rotating cabinet is designed for quick installation and easy maintenance. It meets the requirements of NF EN 671-3 and APSAD R5 recommendations to ensure optimal long-term operation.
Order your fire hose reel en Armoire from MMF today!
Guarantee the protection of your premises with a reliable and certified fire hose reel en armoire. Contact us for more information on our fire safety solutions tailored to your needs.
